Product Information

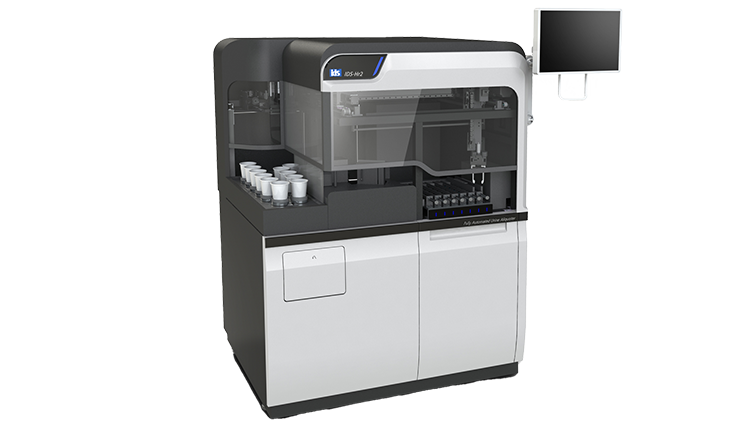

Full-Automatic Urine aliquot processor
IDS-CLAS・Hr
IDS produced our first urine sample pre-analytical systems for laboratories in Japan.
This latest model is an accumulation and simplification of these technologies.
This simple and straight forward design achieves exceptional performance.
- Integrated type
- 180 samples/hr
- Connects single tube transportation externally
Features
- −Utilize a newly-designed large volumetric aliquot ctip (22 mL). There is no delay in processing time, since multiple aliquots can be made from one aspiration.
- −Designed to prevent the possibility of sample contamination from carry-over.
- −Cup holder Train Mechanism: For the smooth and reliable transport of samples.
- −Open-Table Inlet: With its open architecture, one can view the status of the cup inlet without removing any covers.
- −Secondary tube (spitz) auto-sorting unloading Function: Flexible sample handling of aliquots.
- −Loading the secondary tube into 10-tube racks.
- −After aliquoting, connection to a single tube or rack transport system. A variety of analyzers can be connected.
- −Urine Cup and excess sample auto-disposal function: can dispose of the samples and the cups automatically after aliquoting,. Sample waste can also be plumbed directly to a waste system.
Specifications
- Types of cup
- Urine test cup
- Urine cup loading quantity
- Maximum 20 cups
- Cup interrupt function
- Yes
- Bar code
- Select one type below, NW-7, ITF, CODE39, CODE 128
- Aliquot tube
- Aliquot tube: Spitz tube (12 mL)
- Aliquot tip
- 22 mL tip (IDS dedicated tip)
- Urine sample stirring machinery
- Yes (Whirlpool stirrer)
- Aliquoting precision
- Within 5 % CV across the entire range. Within 10% CV at 300 μL
- Aliquot processing speed
- Maximum 180 samples/hour
- Secondary tube auto-sorting unloading Function
- Yes
- Aliquot tube unloading capacity
- Aliquot tube Unloading :90~150-tube (Determined by the specification.)
- Dimensions
- Width 54 in. , Depth 37 in. , Height 59 in.
- Weight
- 771 lbs
- Main unit
- Main unit; 100 volts AC 10A,
Compressor; 100 volts AC 11A,
CPU; 100 volts AC 5A,
Processing Flow
-
Cup loading Area
Loading urine cups to the area. The barcode is read to determine routing and confirm receipt in the laboratory. The operator will be informed in the case of an error.
-
Aliquot tube labeler Area
Create the requested amount of aliquot tubes with the barcode label.
-
Aliquot Area
The cup’s barcode is read and stirring samples. Aliquot the urine from the cup to the aliquot tube.
-
Cup unloading Area
Dedicated unloading for the cups. The operator will be informed in the case of an error.
-
Aliquot tube outlet Area
Dedicated unloading and sorting for secondary tubes according to pre-defined sorting rules. Sorting the aliquot error tubes to the error rack.
-
Connection for external transportation(Optional)
Routes aliquot tubes to external transportation.
-
Urine / Cup auto-disposal part(Optional)
Discards processed urine and urine cups automatically.
